Recycled Plastic Filtration Solutions

Patented Fully Automatic Melt Filter JWH Series

Low Cost

Compared with traditional plate screen changer, the equipment cost can be covered in 0.9 to 1.5 years

>>More

For Various Contaminants

Including paper labels, tin foil, aluminum foil, rubber, silica gel, wood chips, etc.

>>More

Longer Filter Screen Life

Effectively reduce the material pressure in front of filter screen, significantly improve the performance and life of filter, as well as efficiency.

>>More

Higher Production Capacity

The maximum capacity of single machine can reach 500-2000kg/hour according to different specification and materials.

>>More

Higher Production Capacity

The maximum capacity of single machine can reach 500-2000kg/hour according to different specification and materials.

Low Cost

Compared with traditional plate screen changer, the equipment cost can be covered in 0.9 to 1.5 years

For Various Contaminants

Including paper labels, tin foil, aluminum foil, rubber, silica gel, wood chips, etc.

Longer Filter Screen Life

Effectively reduce the material pressure in front of filter screen, significantly improve the performance and life of filter, as well as efficiency.

Higher Production Capacity

The maximum capacity of single machine can reach 500-2000kg/hour according to different specification and materials.

Low Cost

Compared with traditional plate screen changer, the equipment cost can be covered in 0.9 to 1.5 years

Recycled plastic filtration solution

Huasu Saisi filtration equipment manufacturing focuses on providing plastic filtration solutions.

Product Center

Professional equipment | Strict control | Quality assurance

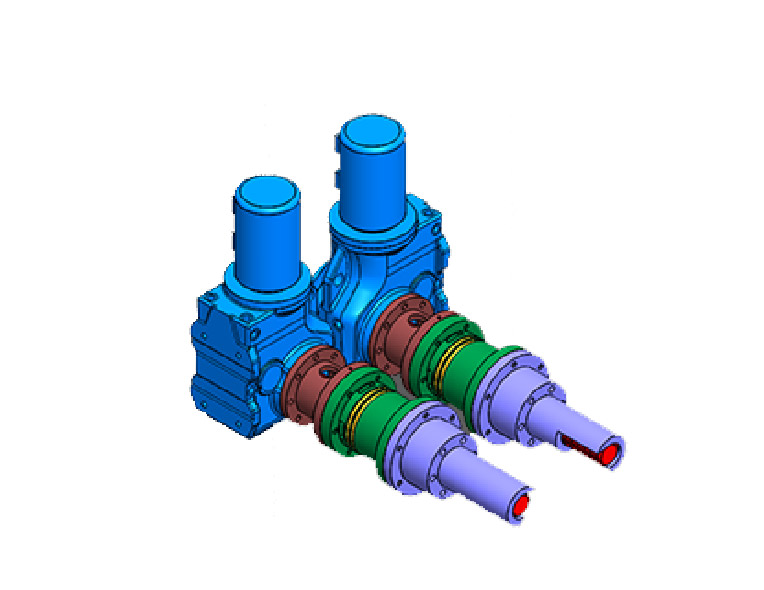

JWH-PET filtration supported high-efficiency slag discharge device

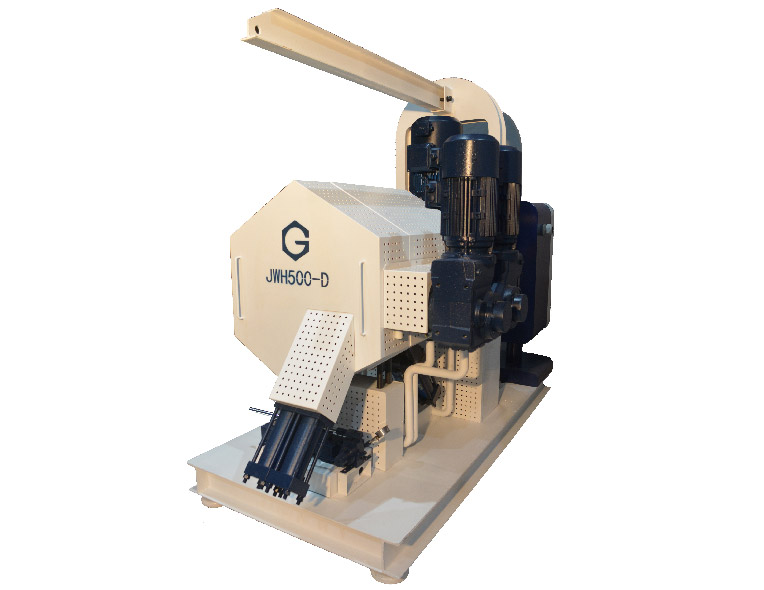

JWH500-D Fully Automatic and Efficient Laser Filter Machine

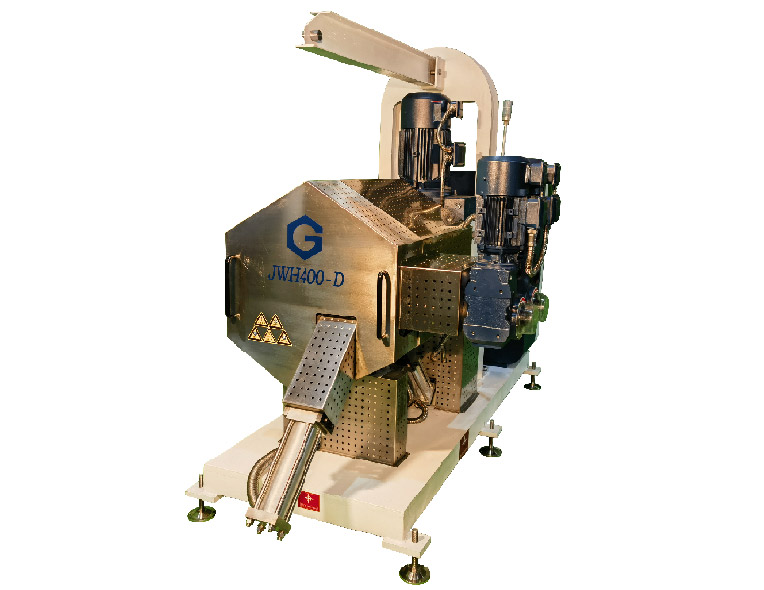

JWH400-D Fully Automatic and Efficient Laser Filter Machine

Plastic filtration solution

Provide efficient services to ensure that customer issues are resolved.

Huasu Saisi's Strength

Our professional team provides you with high-quality services

Independent research & development

How to work

Product advantages

Service

High quality after-sales service

Phone:13861328243
Mail:sales@husus.cn
http://www.husus.cn
Address: Room 1002, Building 11, University Science and Technology Park, No. 20 Jianxiong Road, Taicang City, Jiangsu Province

Newly independently developed

JWH recycled plastic filters can treat up to 5% of various recycled plastics, including PE and PP, PS, ABS, HDPE, etc
The filter plate is made of ultra-high hardness composite materials and laser technology, which can handle various impurities such as paper, wood chips, aluminum, copper, rubber, silicone, etc
The filtration, scraping, slag discharge and other processes of JWH are precisely controlled by fully automatic PLC, which improves the cleanliness of recycled plastics, greatly saves labor and energy consumption, and reduces consumable costs
JWH filters can be easily combined into existing extrusion production lines, Whether it's single screw, twin-screw, various types of pelletizing systems, or downstream devices

How to work

Al JWH high performance melt filters are based on the same principle.
Melt flows from the outside to the inside of a continuously rotating filter drumwith a large number of conical holes. The contaminants contained in the meltare retained on the outside filter plates surface: they are immediately removedfrom the screen by a scraper and then fed to the discharge system.
The filter drum and discharge system speeds can be adjusted independentlyof one another, so that in spite of the many possible applications the optimumsetting can always be selected from both a processing and an economicperspective.

Product advantages

Through the application by our JWH automatic continuous filter, we save our customer’s occupation space, labor cost, material losses, energy and increate your profit margin!
1. lower material losses Filter systems from JG are designed in order to control and optimize the waste discharge of the filter. This can be achieved by the individual control of the filter screen speed, discharge screw speed, and the scraper system pressure.
2. longer screen life time The variable scraper system pressure not only results in less material loss but also a better filtration result, due to variable pneumatic pressure system the lifetime of the filter screens is improved tremendously. The feedbacks of our customers reflect the fact that filter screens from JG have up 25 % greater lifetime compared to other manufacturers.
3. More reliable processing due to constant pressure at the filter outlet Completely closed system with no entrapped air Short contaminant residence times in the filter Very simple replacement of the scraper from outside using a hydraulic cylinder
4. Easy maintenance and quick screen exchange kitNo need to replace the screen for several weeks, or possibly months, depending on the material and the application. Compacted quick exchange kit can dramatically reduce the filter exchange time to no more than 60min.
